Feature:
1.Light weight,compact and tripod mounted, comfortable for long observation;
2. Magnification: 3.1x - 12.4x;
3. Detection range: up to 1400 m;
4. OLED display resolution: 1024x768 pixels Integrated video recording, taking picture;
5. Motorized focus: far and near;
6. External Laser ranger finder （optional）;

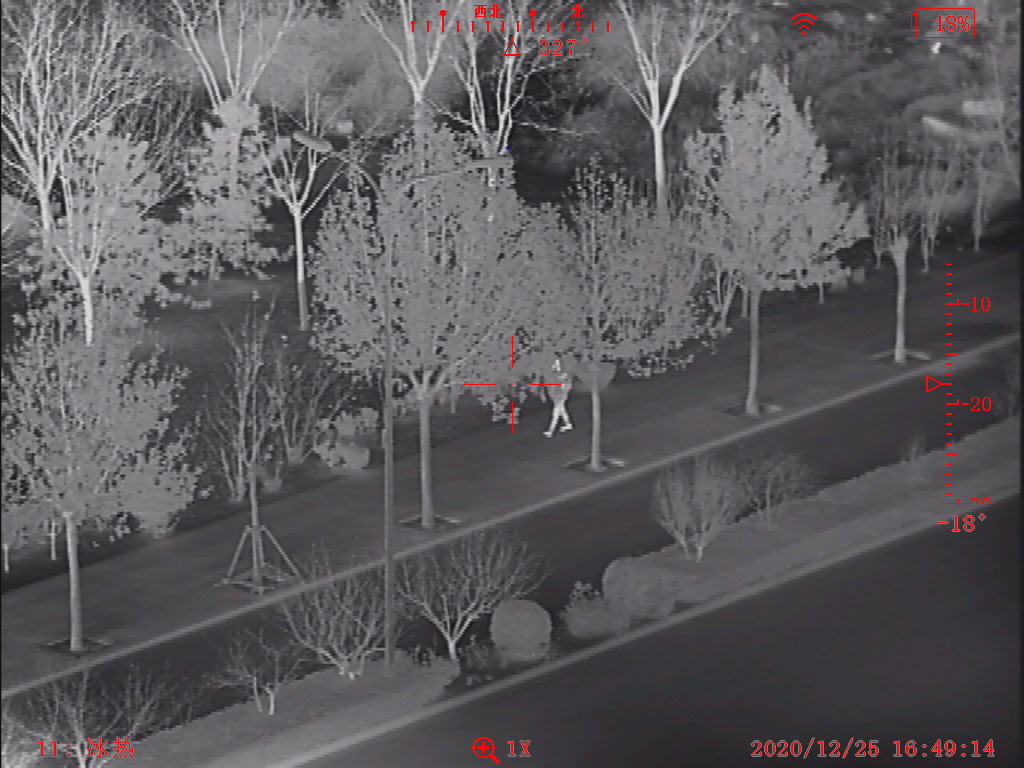

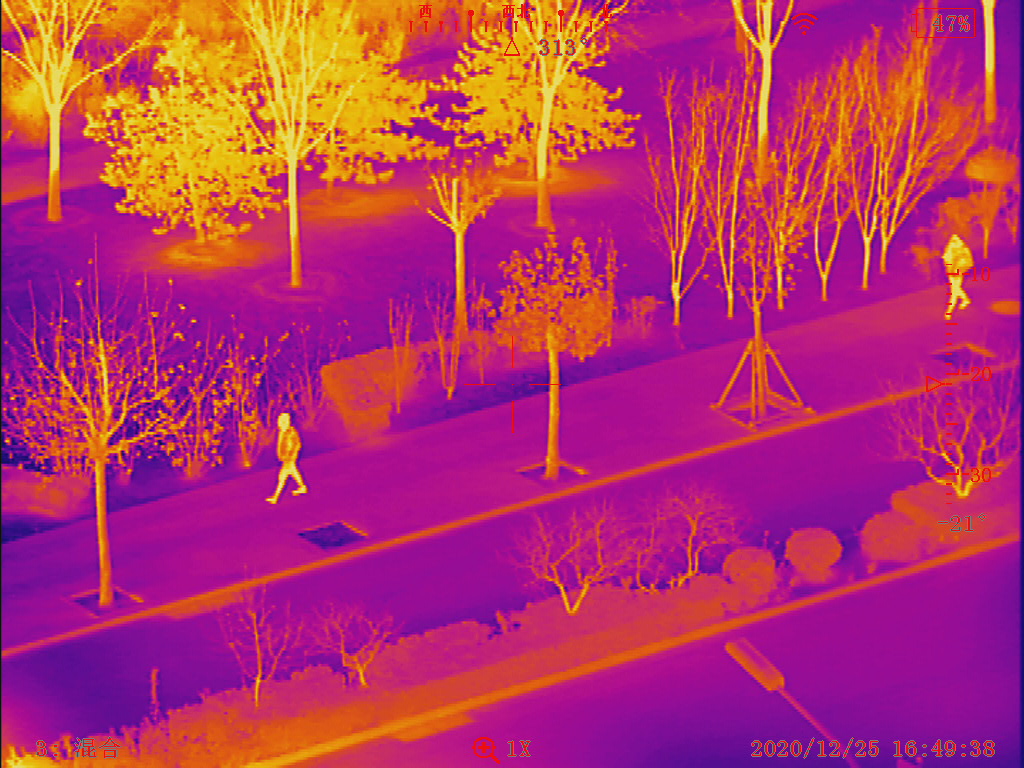

7.14 kinds of thermal color for surveillance ;
8. Compass WIFi with APP for real time video transmission;
Application：
1. Fast discovery of the hidden targets in surveillance and evidence collection;
2. Night patrol, Human rescue, anti-drugs, criminals defending;
3. Fire fighting, forests protection, military task, border defense;
Specification：
Detector | VOX uncooled sensor |
Resolution | 384x288 pixels |
Pitch | 17μm |
Frame rate | 50 Hz |
Wave length | 7.5~13.5μm |
NETD | <35mk @f/1.0 |
lens | 50mm |
Focus length | 50mm f/1.0; Motorized focus; |
Field of view | 4.98°×3.74° |
Image intensification | Image filtering and sharpening |
DDE adjustment | 1~32 |
Brightness and contrast | Automatic and manual |
Thermal color (Polarity) | 14 kinds: White hot /black hot / red hot / yellow hot, green hot,etc |
Reticles | 9 colors; marking and tracking the target |
Zoom | 1x,2x,3x,4x |
Storage | Built-in 16G SD card |
Display (eyepiece) | OLED 1024x768 pixels; Adjustable Dioptre |
Recharging lithium battery | 14.8V 8800mAh |
Power | 6W |
Battery life | 8 hours for continuous use |
video | PAL |
USB port | Transferring the video and pictures |
Interface | RS232 for commissioning the device |
External power | DC12V, 1A |
Working temperature | -40℃ ～ +60℃ |
Storage temperature | -45℃ ～ +65℃ |
Shockproof | ≤30G |
Stability | Passed the vibration test (frequency:5～55～5Hz， accelerated speed 1.5g) |
Rain guard | Raining:1.7mm/min; Raindrop: 0.5～4.5mm； |
Dimension | 188mm×152mm×80mm（including the eye shield） |
Weight | 1.3kg |
