Laser Rangefinder

Laser range finder

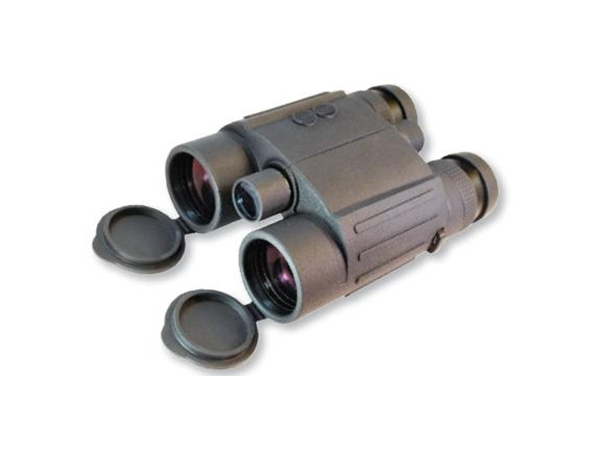

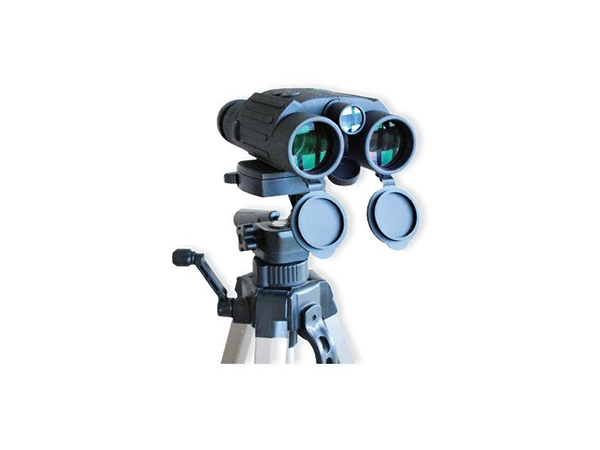

LRF A Laser Rangefinder Binocular

Its fully multi-coated lenses, paired with phase-corrected BAK4 prisms, reduce glare and deliver true color and sharp contrast. The 10x magnification brings distant details up close, and the large 42mm objective lenses gather enough light for use even in low-light conditions. A wide 351' field of view makes it easy to find and lock in on your target.Along with distance measurement, the binocular measures angles of up to 30° with ±0.5° accuracy, and offers Bluetooth connectivity with a ballistic app that uses the distance and angle measurements to determine the right hold for the shot. The optic is built for the elements with an IP67-rated waterproof housing and runs on one 3V CR2 battery. The sleek open-bridge design makes for a comfortable and secure grip.
Follow:
Description

Specification:


Laser

Laser Type

Class 1 Eye Safe

Metering Range

10.06 to 2300m

Accuracy

0.91 m

Peak Wavelength

905 nm



Optics

Prism Type

Roof

Magnification

10x

Objective Lens Diameter

42 mm

Angle of View

6.1° (Actual)

Field of View

116.53 m @ 1000 m

Minimum Focus Distance

10.06 m

Exit Pupil Diameter

4.2 mm

Dioptric Correction

±6 degree

Eye relief

19mm



General

Form Factor

Binocular

Power Source

1 x CR2

Display Type

OLED

Inclinometer

Maximum Angle: 30° Accuracy: 0.5%



Physical

Water Resistance

Waterproof, IP67

Operating Temperature

14 to 122°F / -10 to 50°C

Dimensions

165 x 114 x 61 mm

Weight

890.0 g (without battery)



Laser range finder data

 Reflective target

 20-2300m

Non refelctive target ( light colors)

 20-1600m

Non refelctive target ( dark colors)

 20-1000m

Non refelctive target ( animal size)

 20-500m

Accuracy

 +/- 1m to 5m depending on the distance

Response time (20-900m)

0.5 sec

Response time (≥900m)

1-2 sec

Indicating time

15 sec

Automatic shut off time

30 sec
