Laser Rangefinder

Laser range finder

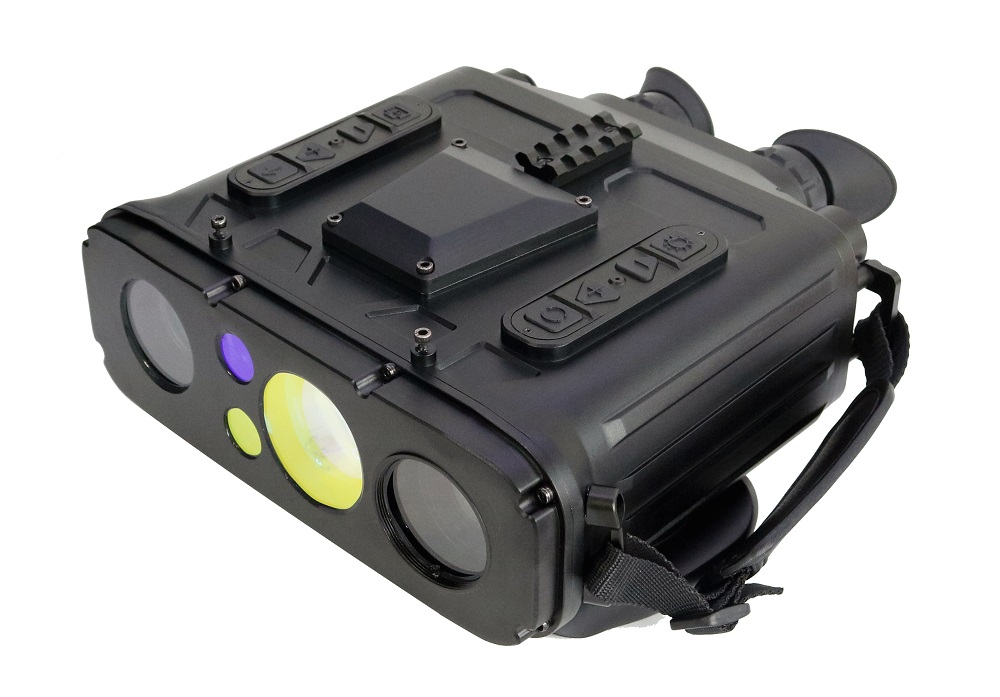

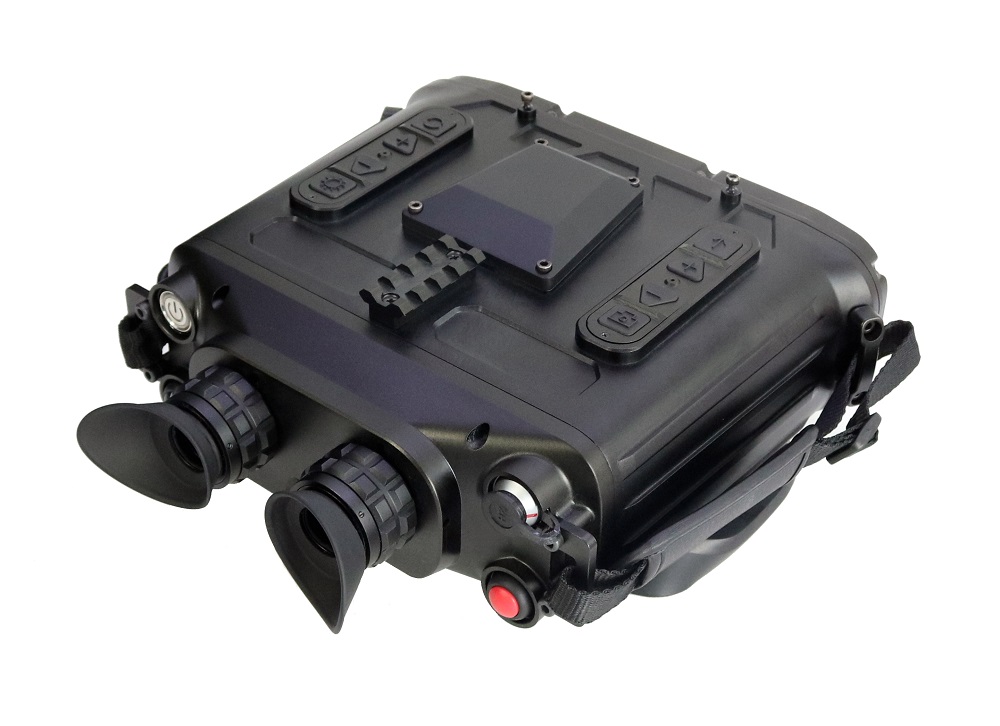

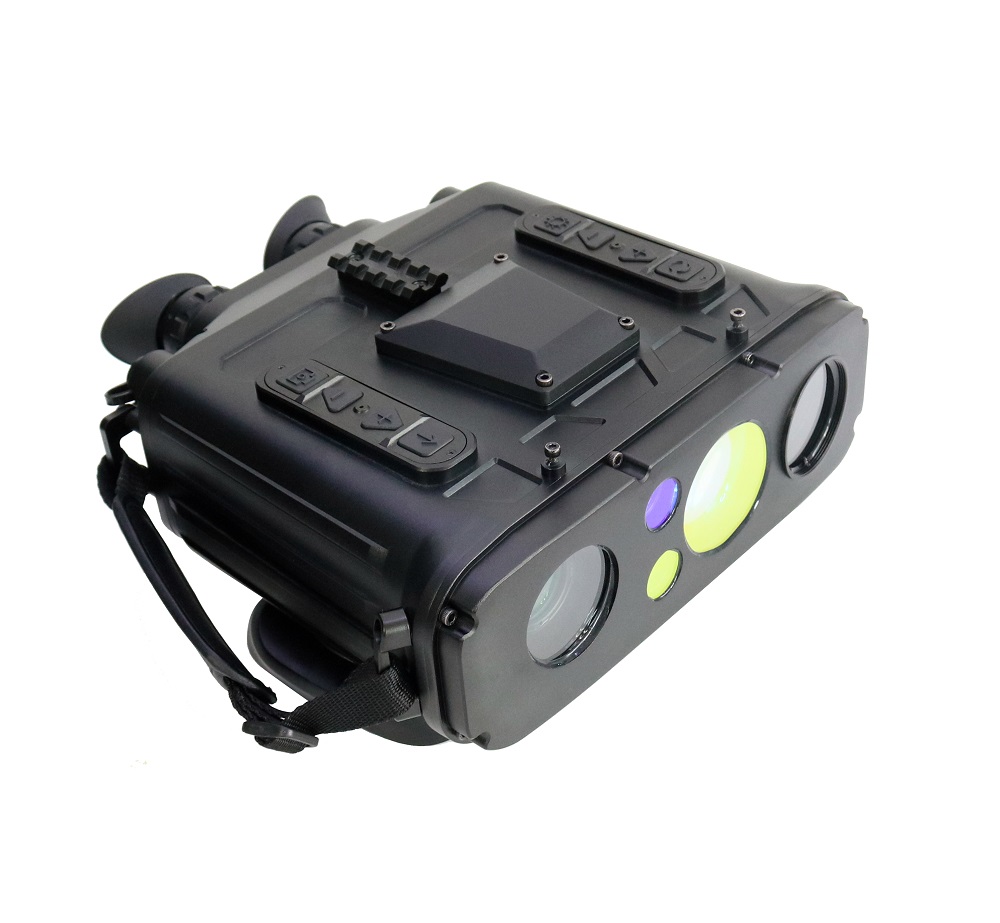

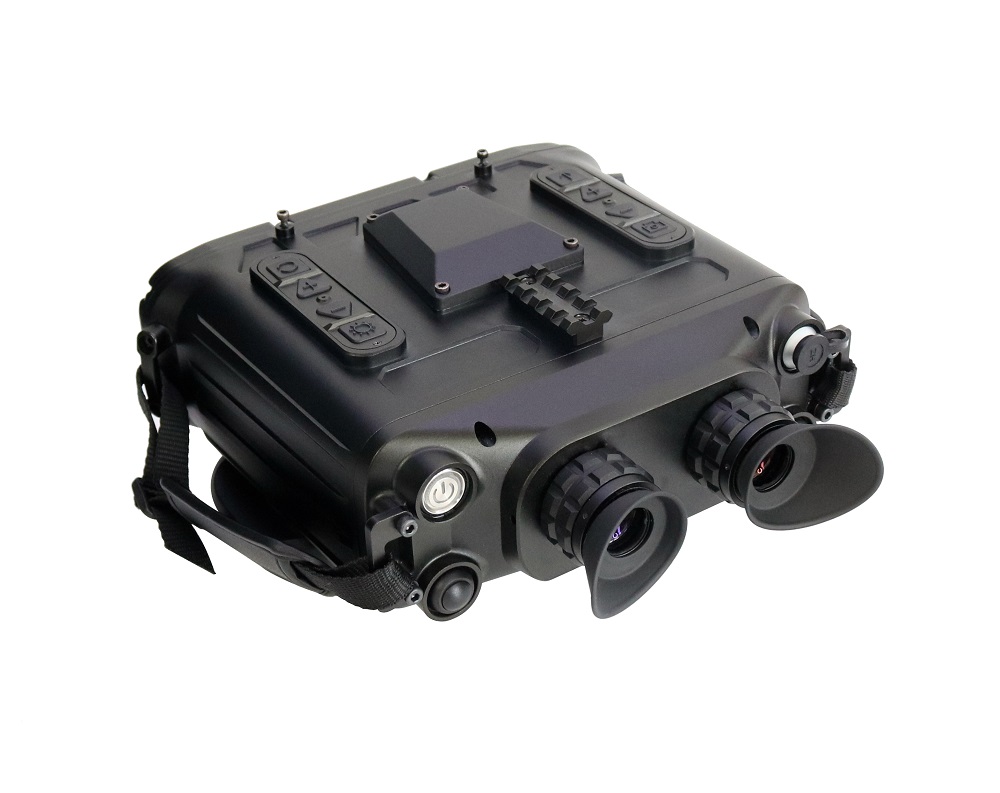

V3623L Laser Range Finder with Positioning System in Day and Night

V3623L is a new type of laser range finder integrated with laser ranging, infrared lighting, long-distance high-definition cameras, WIFI, electronic compass, GPS Beidou, etc. The device is small and lightweight, making it easy to carry. Using 1535nm eye-safe laser ranging module, the measurement is accurate and the penetration is strong. The infrared supplementary laser is invisible to the human eye. The infrared illumination laser is automatically linked and synchronized with the zoom of the camera, and has the ability to respond quickly and continuously track the target at night. Real-time video output, can take pictures and videos. With GPS and LRF, the position of the target can be shown. It can be applied in law enforcement and military tasks. A laser dazzling device is also optional to warn and stop upcoming crimes, provocations, sabotage, candid photography and other activities.
Follow:
Description


Specification


1. LRF range: 15M--20000M

2. GPS and Beidou, calculating the coordinates of the user and targets

3. WIFI for real-time image transfer

4. 32X magnification

5. Built-in IR illuminator for night usage

6. Institutional button, no need to go into the menu to focus, zoom or LRF

7. Manual focus, auto focus

8. OLED display

9. Can see through the car window at 100 meters

10. Evidence collection: video and picture

12.  Identification:

                               Day:Human:500M

                                        2mx3m vehicle:1800M

                             Night:Human:400M

                                         2mx3m vehicle:1300M








Specification:


Lens

Day-night lens6-hour surveillance.                  Focus lengthf180mm; Magnification: 1-32 continuous zoom

1/2.8”CCD low light camera(color-night)

Mini low illumination0.001Lux

Detection

Day :1800mNight: 1300m

Laser

8W laserwave length 940nm

LRF

2 KM6KM20KM Optional

Laser illumination

Manual control, beam can be adjusted, auto-synchronize

Location

GPS + Beidou

E-compass

Yes

Target coordinates

Yes

Power

12V

Storage

32G

Working temperature

Camera-40℃+60℃ laser is shut off in the day);

Laser-40℃+50℃laser is shut on at night

Dimension

249*226*98.2mm

Interpupillary distance

64mm

Weight

2.54Kg

FOVSD

-3SD -- +5SD

Resolution

19.64″

Working hoursh

8 hours

Protection

IP67

Accuracym

Minimum ±1m  maximun ±2m

Accuracy

Minimum range: 98%  maxium range:98%
