Features:

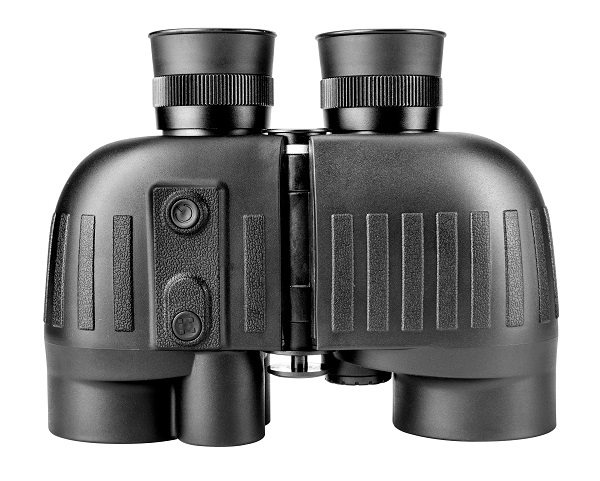

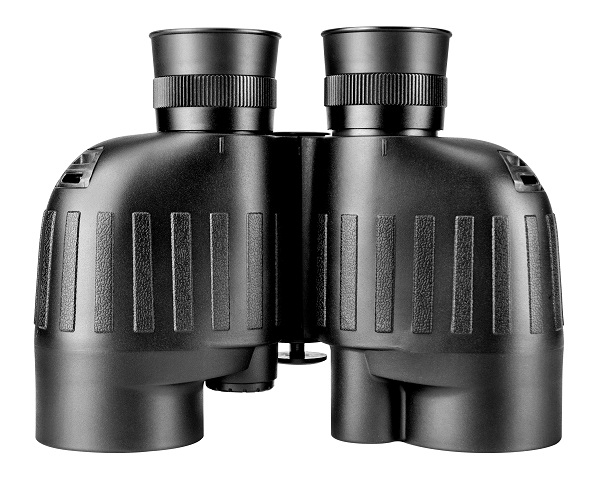

1 The product adopts the design of the classic nautical Paul telescope, and the lens adopts high-definition coating, which can clearly observe the target from a long distance.
2 Using a High transparency LCD display , does not block any observation field of view;
3 Data can be obtained quickly within 1 second, regardless of distance;
4 The product adds an electronic compass, which can obtain the real-time position of the observation target.
Specification:
Model | LRB-5000 | |
Performance | Range distance | 1m-5000m |
Measurement error | ±1m(1-600m)/±2m(600-1000m)/ ±3m(1000-3000m) | |
Units of measurement | M/yard | |
Screen | High transparency LCD display | |
Angle measurement range | ±85° | |
Features | Distance measurement | Yes |
Height measurement | Yes | |
angle measurement, | Yes | |
meter/yard switch | Yes | |
electronic compass | Yes | |
measurement method | once | |
Automatic shutdown time | 30S after no operation | |
Optical parameters | Optical magnification | 8X |
Objective lens diameter | 50mm | |
Exit pupil distance | 17mm | |
Exit pupil diameter | 4.65mm | |
Nearest focal length | 2M | |
Field of view | 8° | |
Diopter | ±5D | |
Eyepiece diameter | 19.2mm | |
Laser parameters | Laser band | 905nm |
Security Level | Class 1 | |
Operating Voltage | 3.7V | |
Operating temperature | -20℃/+40℃ | |
interface | No | |
Appearance parameters | Shell material | PC+glass fiber |
Size (mm) | 180X148X68 | |
Weight (g) | 955 | |
