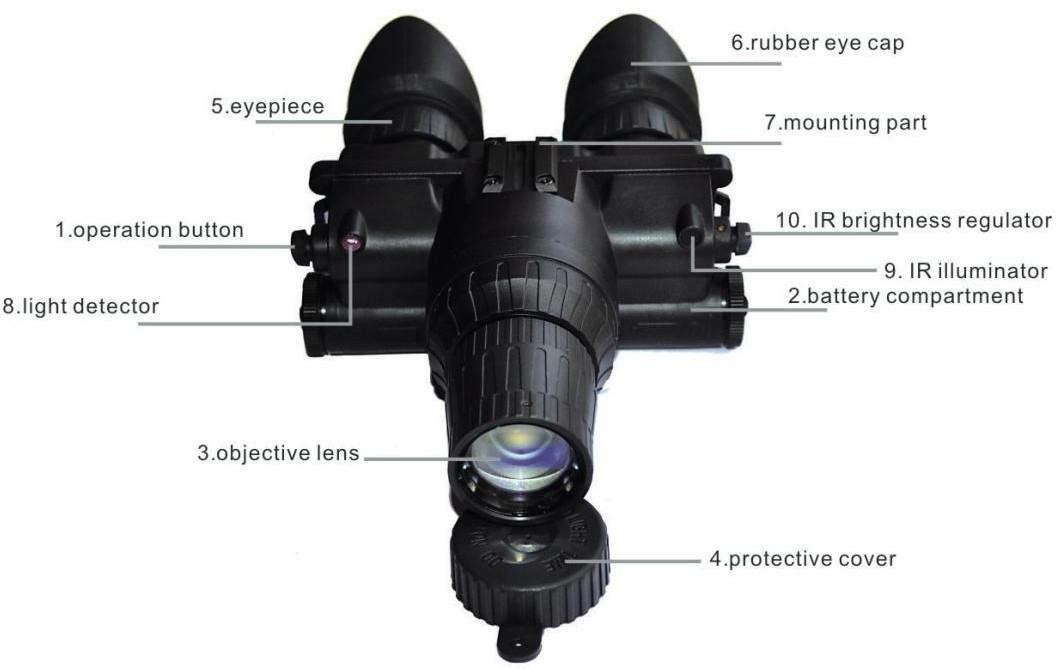

Feature：
● IP67 weatherproof
● No power consumption when in standby
● Embedded spring in battery’s cap
● Optional battery type: One CR123 or two AA batteries can power this unit
● Auto operating mode: In this mode, the IR illuminator will turn on automatically when the ambient light is less than 0.05Lux and will turn off automatically when the ambient light is more than 0.1Lux.
● Fully adjustable head mount: The head mount can be adjusted according to head size.
● Mil-spec mufti-coated optic: Multi anti reflection film can restrain the reflex of lens, which can reduce the loss of light so more light can go through the lens to get a sharp image.
● Automatic brightness control: When the ambient light changes, the brightness of the image detected will keep the same to insure a stable viewing effect and also to protect users’ eyesight.
● Bright source protection: The device will shut off automatically in 10 seconds to avoid the damage of the image intensifier tube when the ambient light exceeds 40 Lux.
● Low battery indication:
IIT | Gen2+ |
Resolution (lp/mm) | 45-64 |
Photocathode type | S25 |
S/N (dB) | 21 |
Luminous sensitivity (μА/lm) | 450-600 |
MTTF (hrs) | 10,000 |
Magnification | 1x |
FOV (deg) | 40 |
Detection distance (m) | 220-280 |
Diopter (deg) | +5/-5 |
Lens system | F1.2, 25.8mm |
Range of focus (m) | 0.25--∞ |
Dimensions (mm) | 149x121x51 |
Weight (g) | 413 (with battery) |
Power supply (v) | 2.0-4.2V |
Battery type (v) | CR123A (1) or AA (2) |
Battery life (hrs) | 80(w/o IR) 40(w IR) |
Operating temperature(℃) | -50/+60 |
Environmental rating | IP67 |
Inter pupillary Distance | 75mm |
NV Goggle with 5X lens:
