Feature：

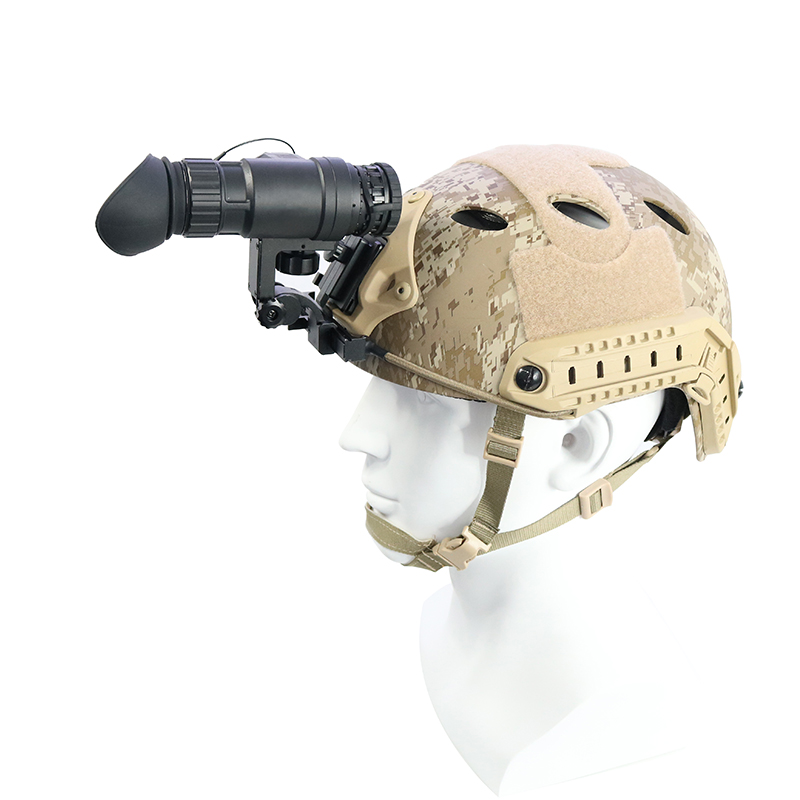

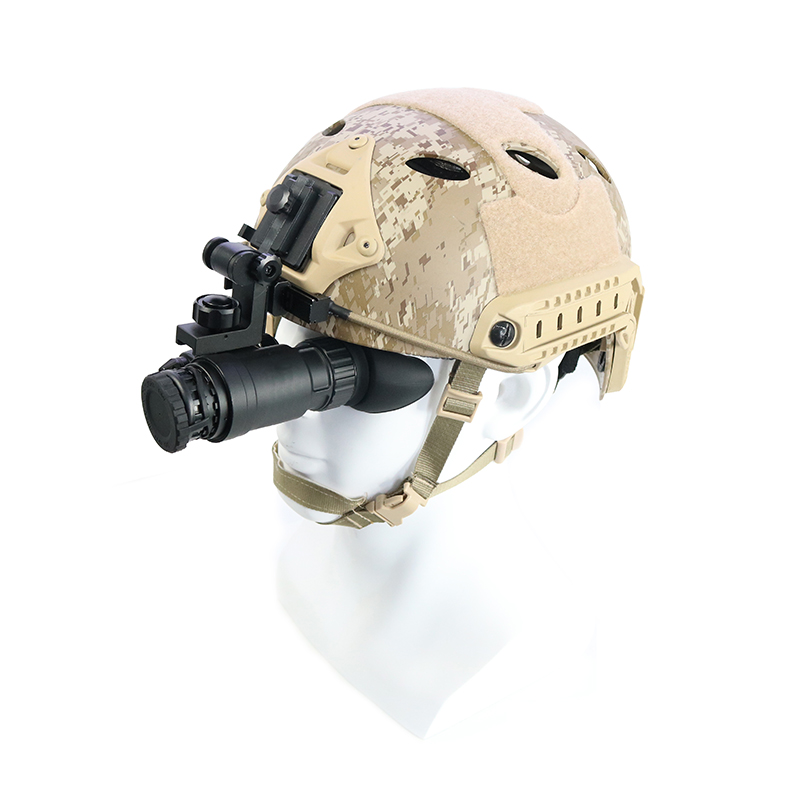

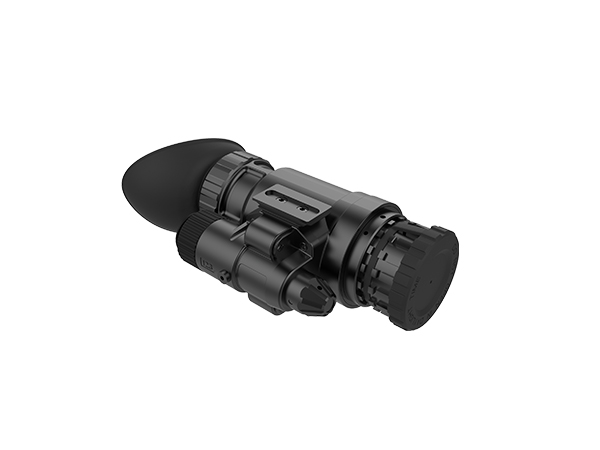

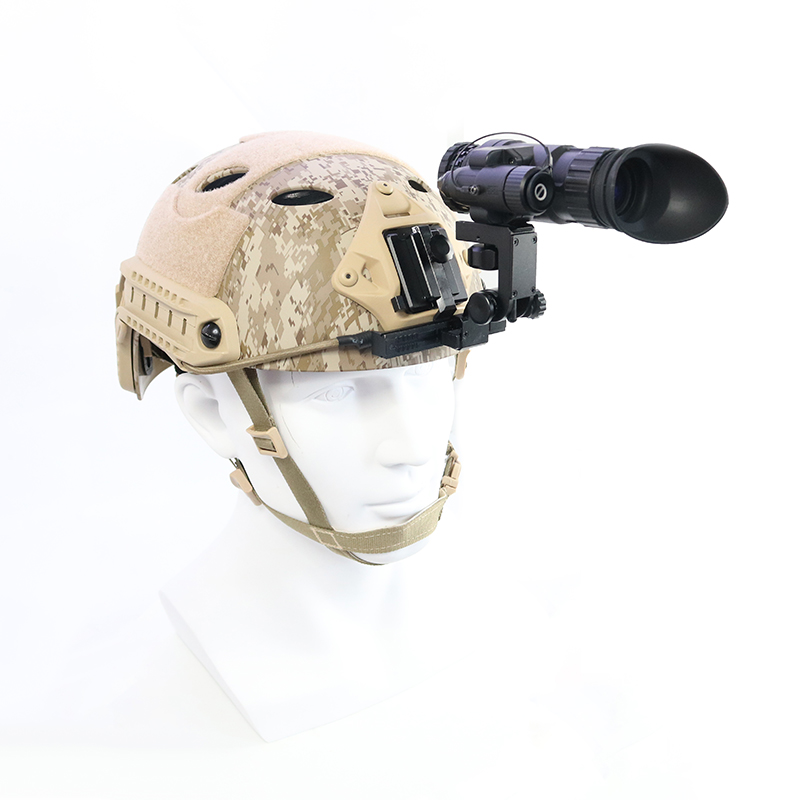

2230M is a helmet mounted night vision monocular with Gen 3 tube, bigger FOV, light weight, easy operation. Magnification can be increased by 3X,5X lens. Bright light off system is built in it to protect it from the damage of bright light. It can be applied in military tasks, boder defence, sea guard, public security, evidence collection, anti-smuggling, etc.
Specification：
Model | 2230M |
Generation | Gen2+, Gen 3 |
Magnificaition | 1X |
Resolution | 64 lp/mm |
Photocathode | S25 |
Signal to Noise ration（dB） | 25-28 |
Sensitivity（uA/Lumen） | 850 or 1600 |
MTBF（hours） | 10,000 |
FOV（°） | 50+/-2 or（40/+-2） |
Detection distance（m） | 250 |
Target cross | Built-in（optional） |
Diopter adjustment | +5/-5 degree |
Lens | F1.2, 25mm |
Deformity | <0.5% |
Exit pupil（mm） | 20-45 |
Defelction | 5-10 |
Coating | Supercacuum ion muil-ti coating (film) |
Focus length（m） | 0.25--∞ |
Bright light off | Fast to respond to the bright light |
Flip up | Yes; to swtich on or off the night vision |
Dimension（mm）(without eye shield) | 115x69x54 |
Housing | Aircraft aluminium alloy |
Weight（g） | 240（with battery） |
Voltage | 2.6-4.2V |
Battrery（voltage） | 1 pc of lithium battery |
Working hours | 80(without the IR switched on) 40( with the IR switched on) |
Working temperature（℃） | -40/+50 |
Humidity | 5%-98% |
Water proof | IP65（IP67 optional） |
