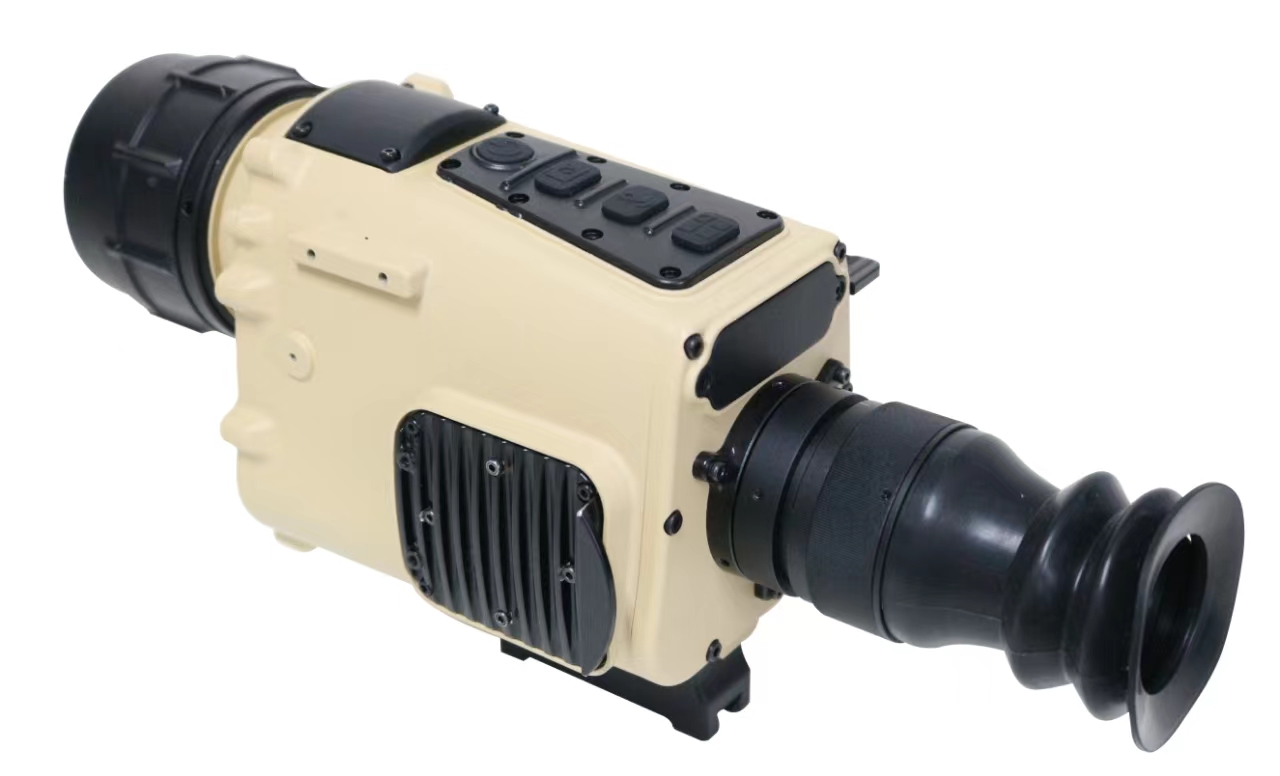

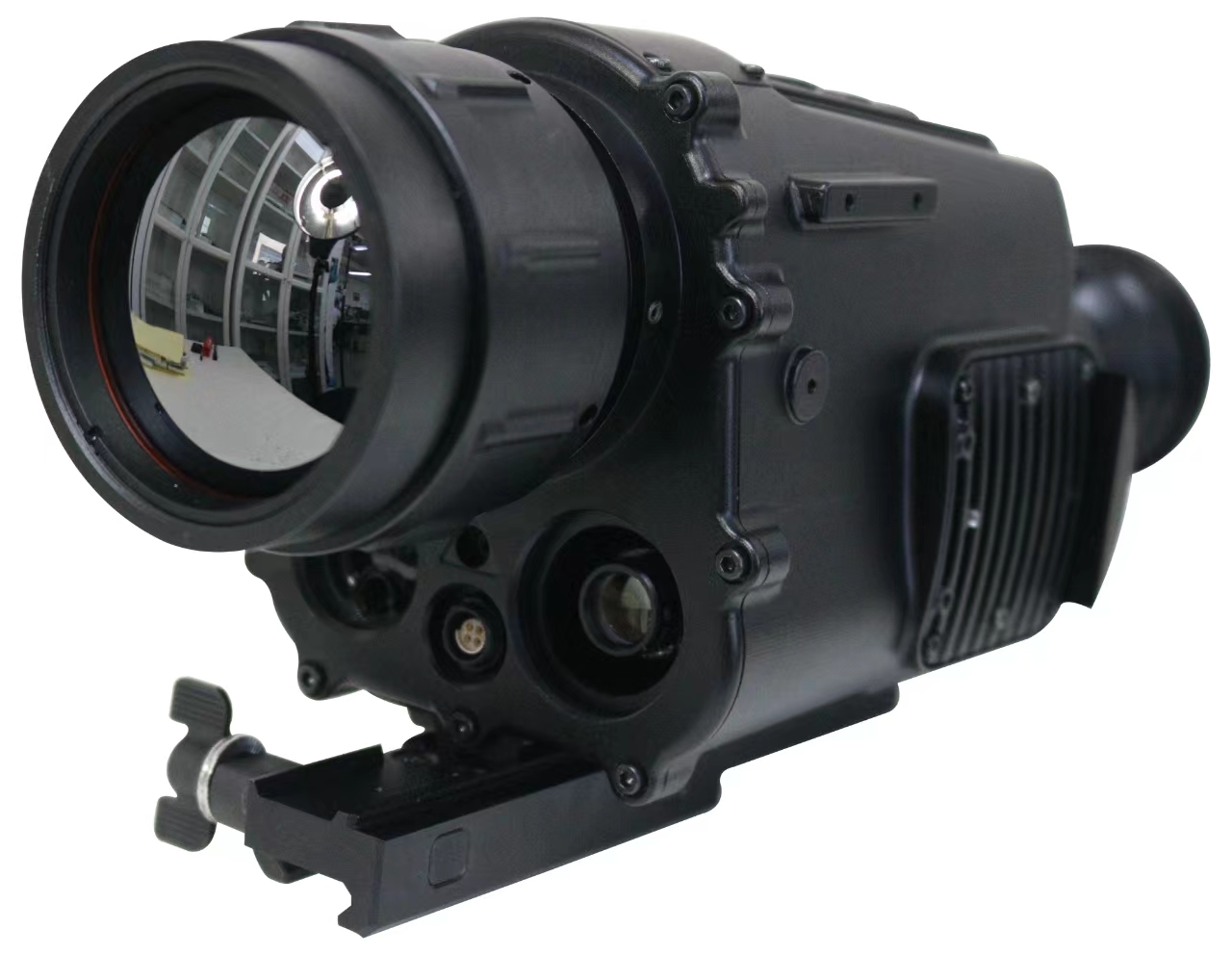

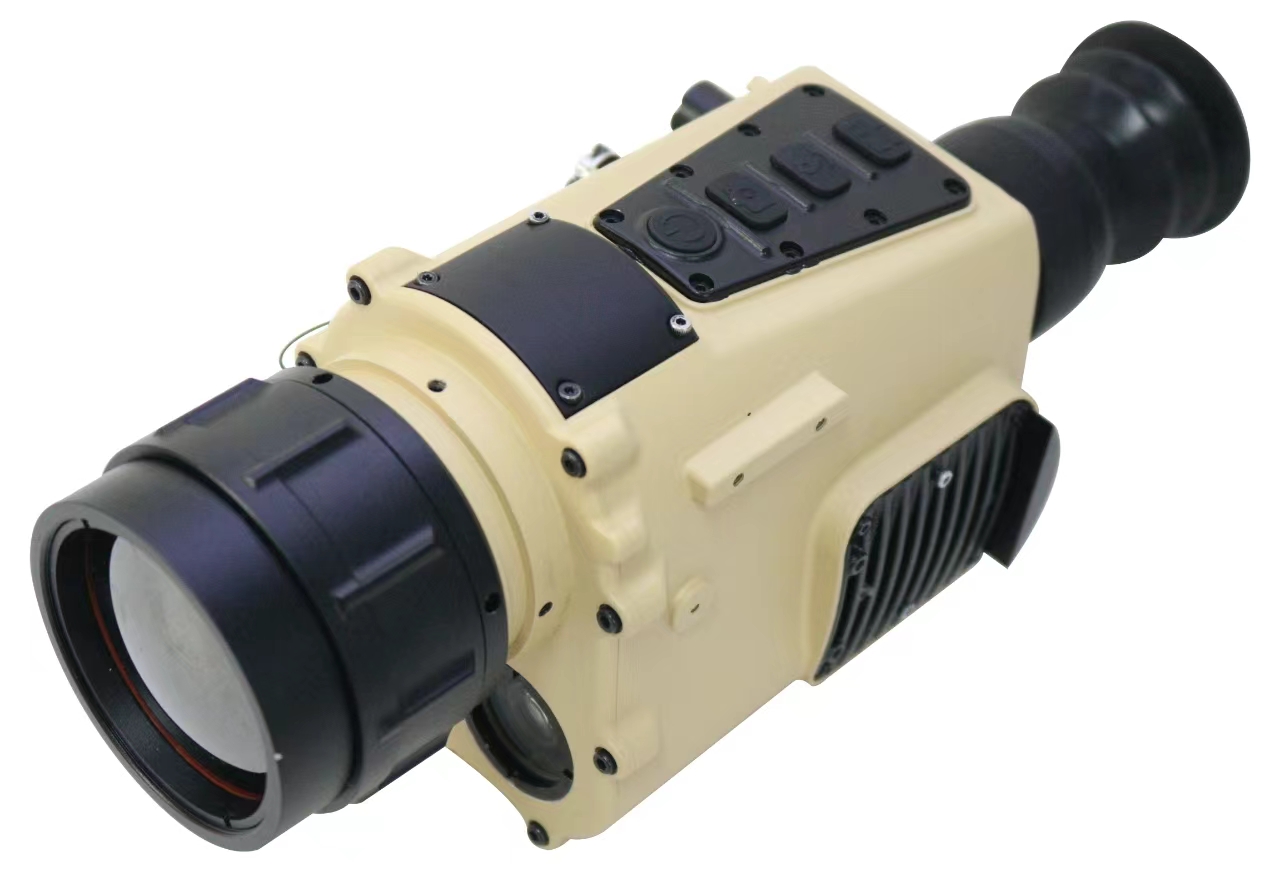

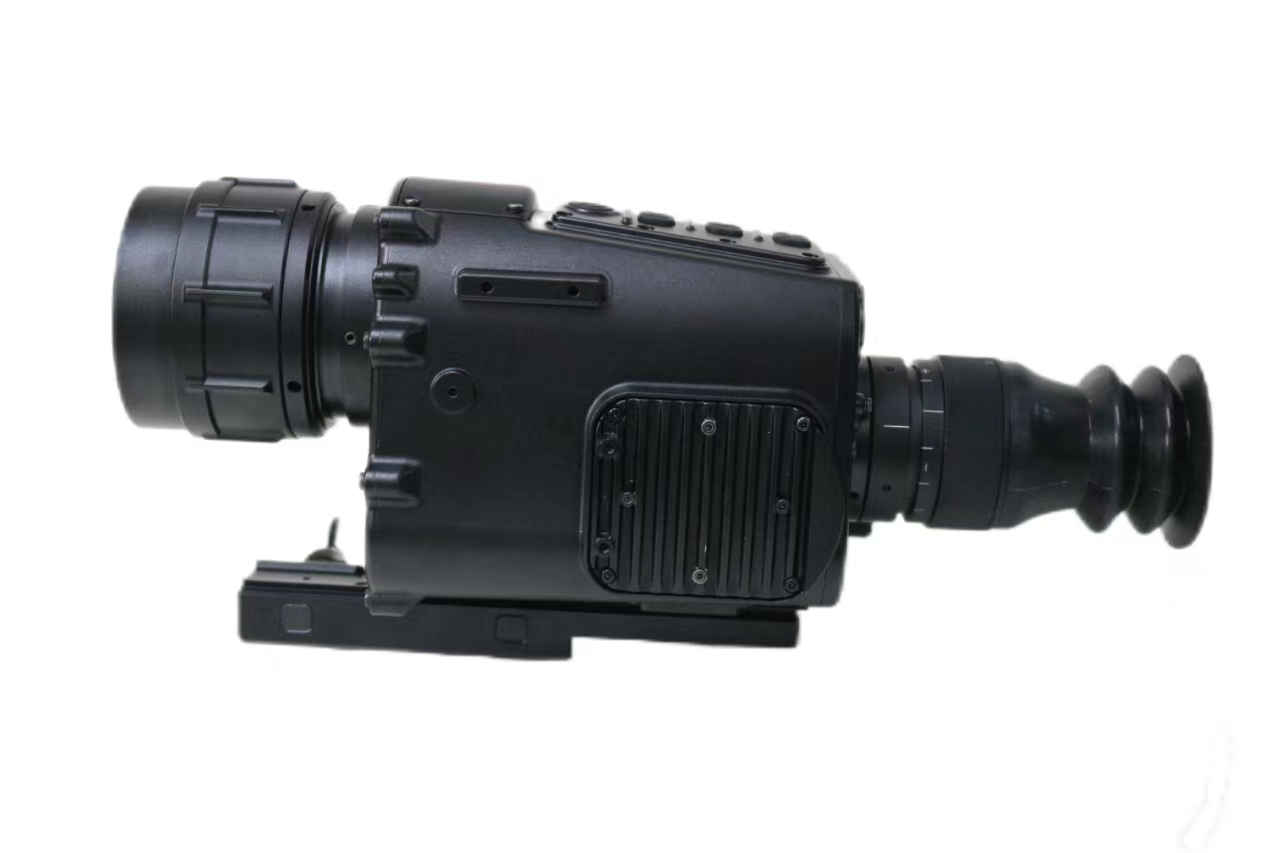

MX 307 Thermal scope for detecting the drones

 >

  1. Precision target reconnaissance and positioning

  2. Multi-projectile trajectory calculation

  3.Fast and comfortable operation

  4. Light weight

  5. Low and slow small drones assist in aiming and shooting

  6. Target tracking and auxiliary strike

  7. Fast and stable

Features:

 Precision targetreconnaissance and positioning

■Self-positioning  horizontal  accuracy≤±5m                                                                      ■ Target positioning accuracy≤±20m

Multi-projectile trajectory calculation

■ Measurement of temperature,humidity,pressureand other meteorological parameters    ■Supports known cartridge types

Supports custom cartridge type                                                                                            ■Correctable wind deviation

Fast and comfortable operation

■ Interface function operation guide                                                                                   ■Ergonomic design

Lightweight

■Small size 245mm*110mm*100mm                                                                                ■ Lightweight 1kg

Low and slow small drones assist in strikes

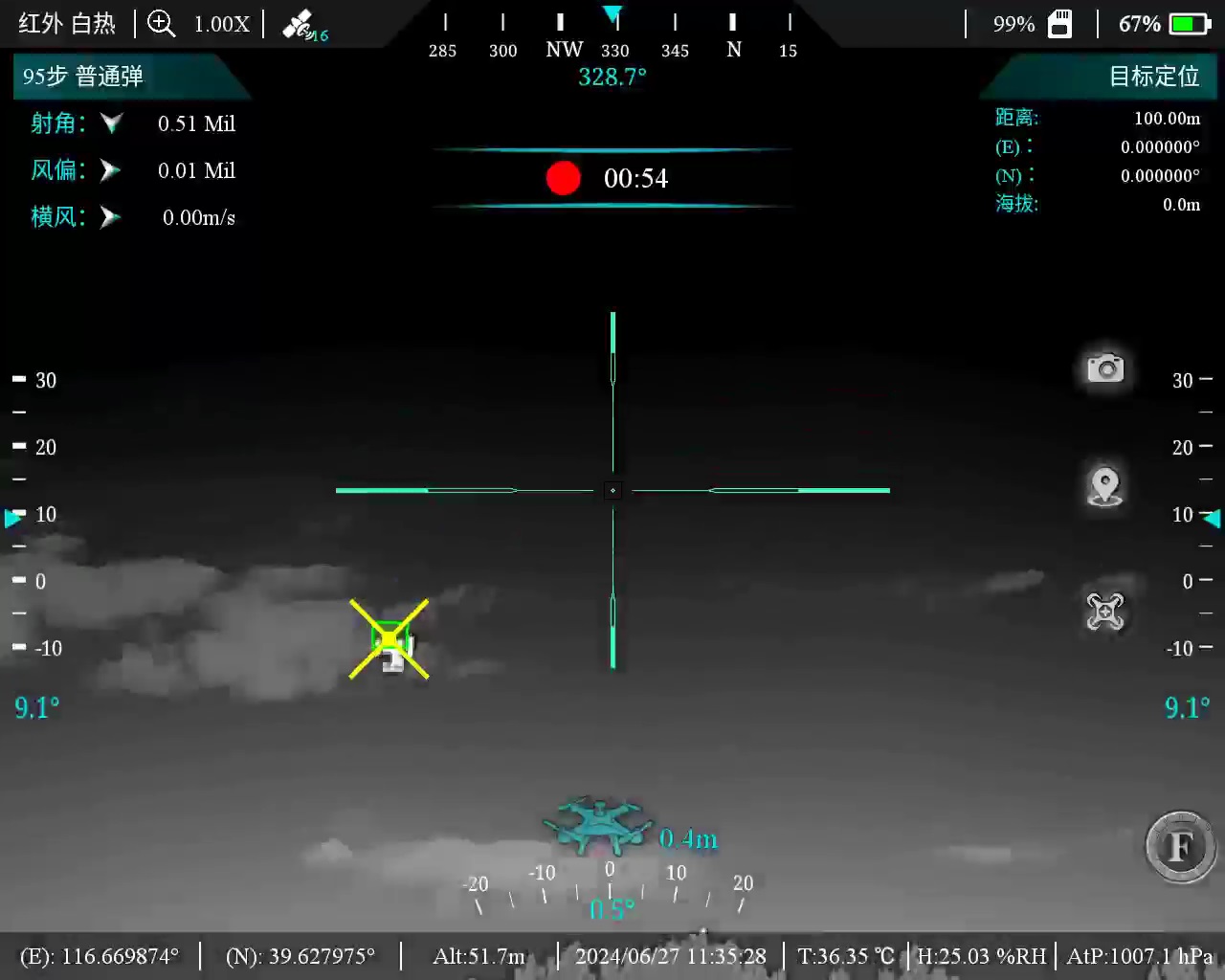

■ Low and slow small drone recognition              ■ Low and slow small drone target positioning    ■ Low, slow, small UAV target trajectory calculation and auxiliary strike

Target tracking and auxiliary strike

■ Track a uniformly moving target                                 ■ Tracking frequency: 5Hz

■ Three-dimensional velocity measurement and positioning

■ Uncooled,quick start≤30s            ■  Operating temperature range:-40℃ to +60℃         ■ IP67 protection

Specification:

Image mode

■ Visible light

■ Infrared thermal imaging

■ Fusion

Visible light

■ Resolution: 1920*1080

■ Target surface size: 1/2.8inch

■Field of view: 7.8°*6.3°

Infrared thermal imaging

■ Resolution:640 * 512

■Pitch:12μm

■Field Angle: 8.8° X 7.7°

■Frame rate: 50HZ

Laser ranging

  ■ Laser band: 905nm

 ■ Measuringrange: 5m-1500m

Trajectory solution

■ Trajectoryentry:Supports custom entry

■Numberof ballistics stored: 10 sets

■ Wind deflection accuracy:0.05mil

■Angleaccuracy:0.05mil

Working hours

   ■Continuous  working  time≥5  hours

Weather sensor

■ Temperature range: -40℃~+ 60℃

■ Humidity range: 0%RH to 100%RH

■Airpressure  range: 200hPa~1100hPa

External interface

■ DC/USB/PAL/RS232

Positioning element

■Positioning  mode: Beidou / GPS / GLONASSmulti-mode

Electronic compass

■Azimuth measurement accuracy: 0.5°(RMS)

■Pitch Angle accuracy: 0.1°(RMS)

Intelligent automatic correction of magnetic declination

■ Can automatically identify the location of the machine(designated location)mag- netic   declination   Angle,No   manual   correction   required
