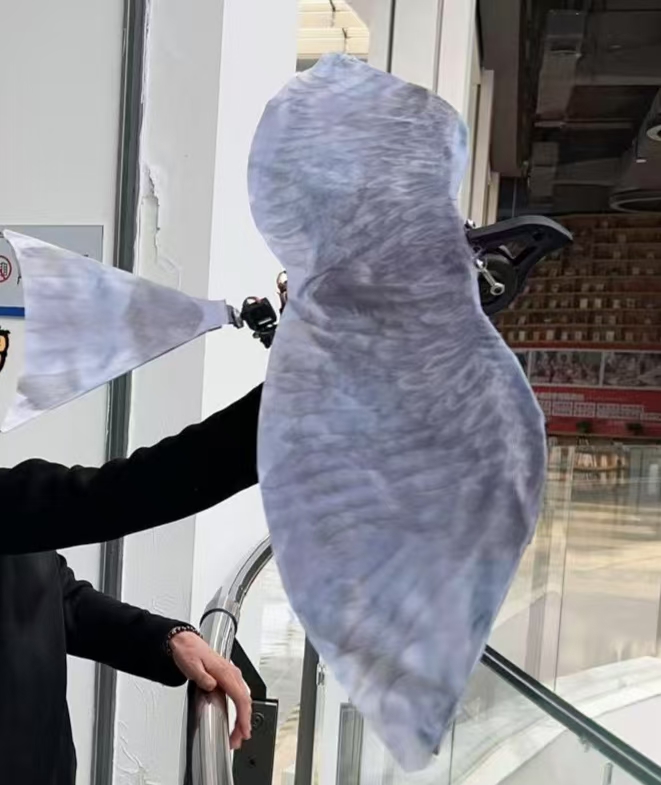

The robot eagle is an aerial reconnaissance weapon that combines bionics and cutting-edge technology. It is modeled after the eagle, with a realistic wing structure and streamlined fuselage, a wingspan of up to 1.2 meters, and equipped with a micro motor and intelligent control system, which can achieve complex flight movements such as precise hovering and rapid dives. With a built-in high-definition infrared camera, it can penetrate clouds and fog, and capture ground dynamics in real time; it can perform reconnaissance missions in mountainous areas and jungles that are difficult for humans to reach. From enemy surveillance in military operations to border patrols and disaster monitoring, the robot eagle has become the "eye in the sky" in the field of modern reconnaissance with its stealthy and efficient characteristics.
Function:
1. Control: 5 channels, including lift, roll, direction, throttle, flight control mode. 2. Mode: autonomous balance mode, manual, stabilization, balance.
3. Autonomous flight, route flight, automatic navigation, return function.
4. FPV image transmission, FPV control flight.
Equipment configuration;
1. Night vision camera
2. Special frequency image transmission
3. Receiver
4. Remote controller ELRS receiver
5. Autonomous flight with GNSS flight control set
Specification:
Wingspan | 1.2m |
Length | 0. 55m |
Take off weight | 550g |
Body material | The body adopts 3K full carbon fiber frame and stainless steel joints for collision resistance |
Wing and tail materials | Impact-resistant high-strength wings and tail, special flexible wing material. |
12g digital servo, 2 metal gears, with aileron adjustment function. | Yes |
15g aluminum alloy digital servo 1 piece. | yes |
3-axis balanced flight controller with GNSS. | Yes |
2S 20A brushless ESC. | Yes |
High efficiency brushless motor. | Yes |
Double gear synchronous reducer. | Yes |
Battery | 2S15C 3000mAh Lithium battery |
No center of gravity adjustment required. | Yes |
The overall battery life is 12-15 minutes. | 12-15min |
