L1536 10KM Military Laser Range Finder- target locator

The L1536 integrates visible light camera, laser range finder, weather sensor, satellite positioning, electronic compass, recorded storage, wifi transmission, individual using the equipment for long distance reconnaissance, can get the local location of geographical coordinates, can measure target azimuth, pitch Angle, can target for ranging speed measurement, can get the target geographical coordinates.
Follow:

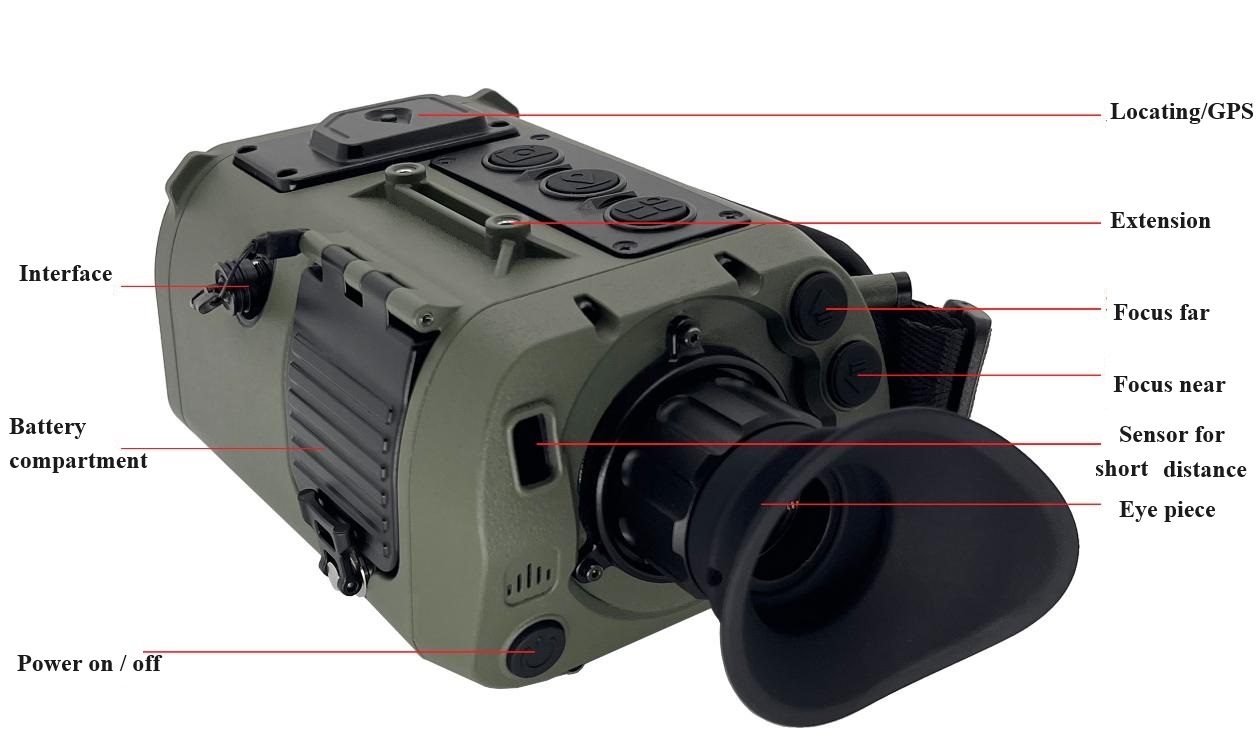

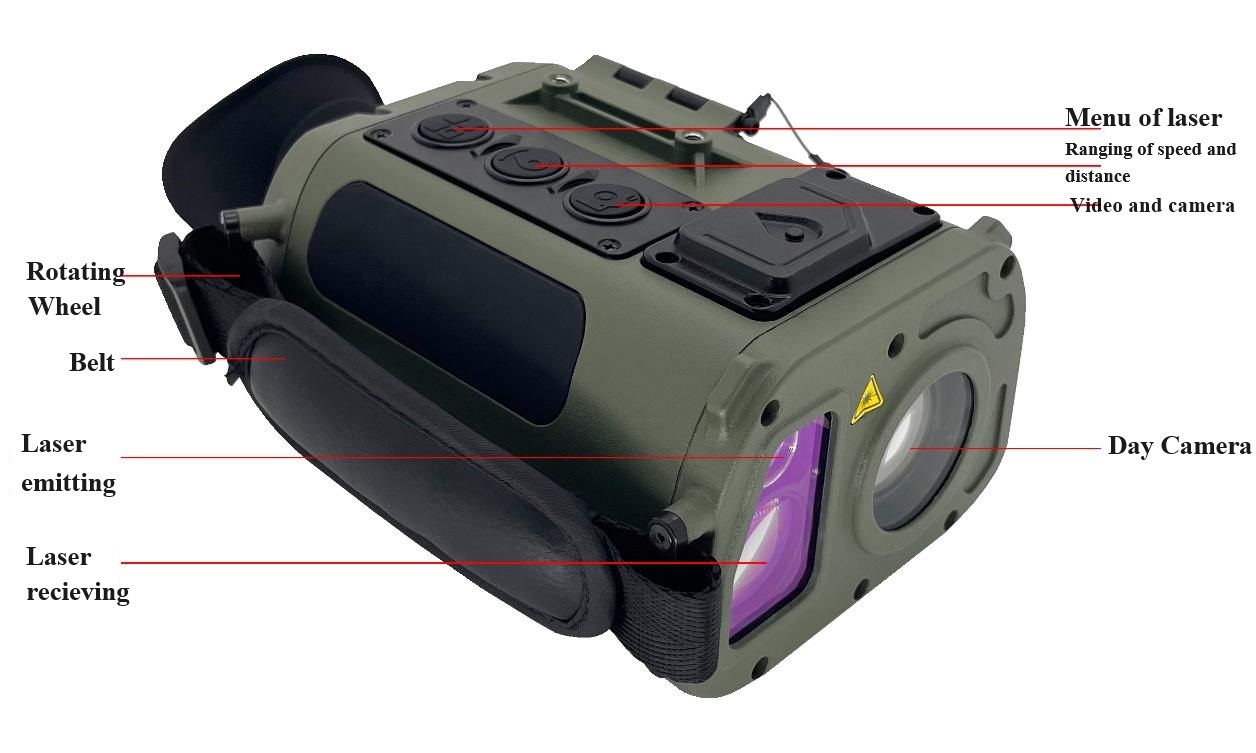

Description


Feature:


   1. 30m-10KM laser range finder

   2. E-compass and WIFI

   3. Measure the range and the speed of the target

   4. GPS information of the target : longitude, lantitude, altitude

   5. Range selection

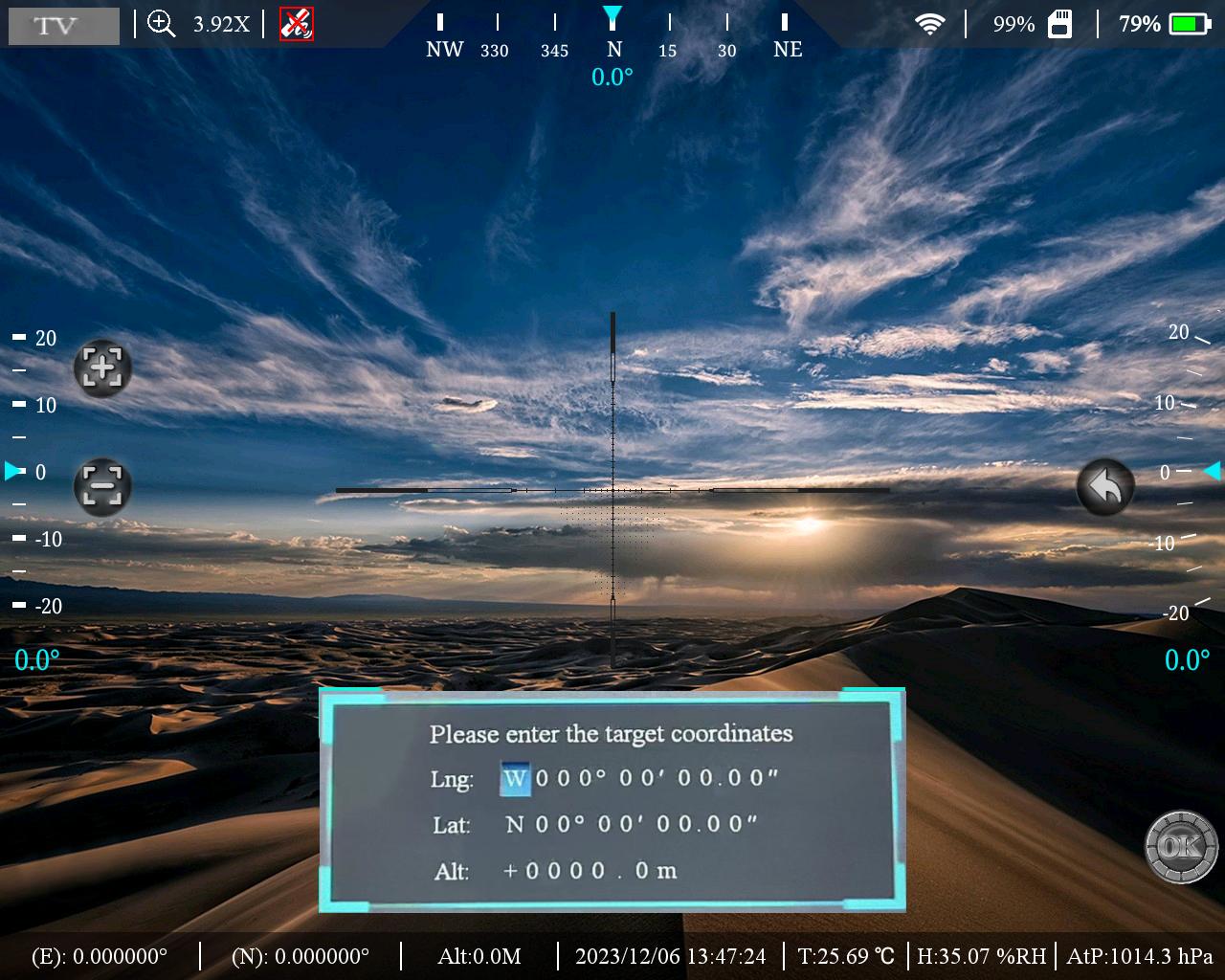

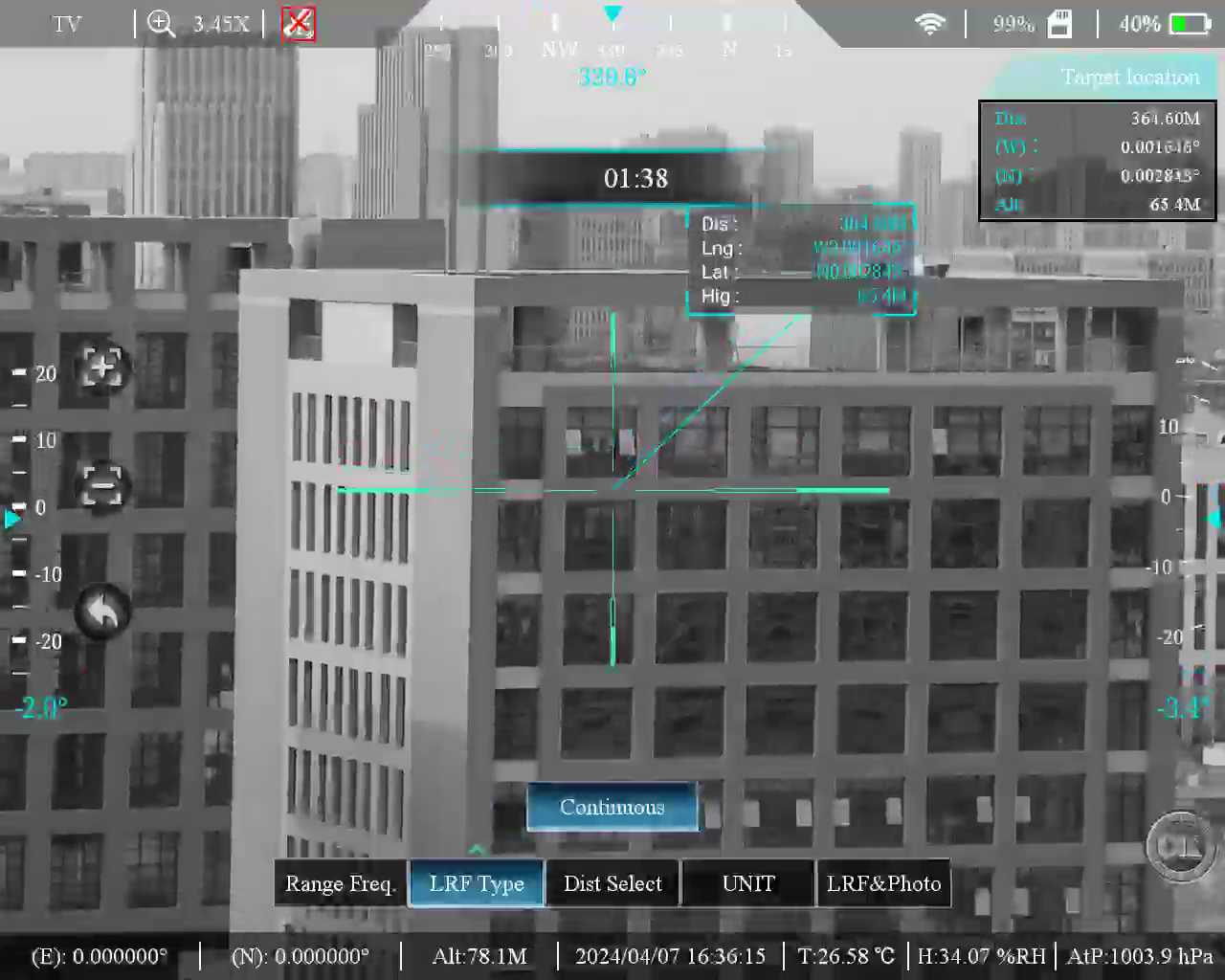

   6. Put in the coordinates of a target to seach it

   7. Video and picture

   8. Replay the video










   Specification


    1. Visible light




Category

Item

Specification

Detection

Device type

CMOS

Resolution ratio

1920*1080

Target size

1/2.8

Optical

Magnification

3.45×~97.59×

FOV

8.3°×6.7°~0.35°×0°.28

Function

Day and night switch

Black / white / color switch

Defog

The transmission ratio is 1.5

Coverage

5km identify Medium vehicle (2.3m*2.3m)

2km identifies an upright pedestrian (1.8m*0.5m)




2. Laser ranging and laser
 Specifications



Category

Item

Specification

Ranging performance

laser wave length

1535nm (human eye safety)

Ranging  frequency

1Hz~10Hz is adjustable

Minimum range

30 Meters

Maximum  range (visibility: 8 Km)



8000m ( for vehicle)

11000m ( for large target)

Ranging accuracy

± 2 m

Quadrant  rate

98%

Ranging function

Unit

Metre; Yard; feet

Distance measurement photo

Yes, 0-5 seconds countdown photo, can be turned off







3.The weather module

Category

Item

Specification

Temperature

measuring range

-43℃60℃

Humidity

measuring range

0%RH 100%RH

Pressure

measuring range

200hPa1100hPa

certainty of measurement

±1hPa

Corresponding to the elevation error

150 Meters

4. Positioning technical Specifications

Category

Item

Specification

Positioning

Positioning mode

GPS / Beidou / glonass

Self-positioning accuracy

Level 2m (CEP), elevation 5m (PE)

Target positioning accuracy

Level 20m and elevation 30m

Coordinate system

Geodetic coordinates / Gaussian coordinates / UTM Mercator / mgrs grid

5. Directed technical Specifications

Category

Item

Specification

Directional performance

Azimuth angle measurement range

360°

Azimuth orientation precision

0.2° (RMS, host inclination of 0°)

Range of the pitch angle measurement

-88°+88°

Pitch-elevation angle measurement error

≤0.2°RMS @-15°15°

Range of horizontal roll angle measurement

-180°180°

Roll-over angle measurement error

0.2° (RMS, @ -15° pitch angle 15°)

Angle unit

Degree, density (6000 Mil), percent degree

declination

Magnetic bias Angle calibration

have

6. Display the technical Specifications

category

Item

Specification

Display performance

Display type

OLED

Display resolution

1920*1080

Display size

01 Inch.7

Exit pupil diameter

7mm

Distance of exit pupil

22mm

Diopter regulation range

-5+5

Split performance

Divide type

Six kinds of

Divide the color

Black / white / red / blue

Image mode

Visible polarity

Color / black and white

7. External interface, and technical Specifications

Category

Item

Specification

Multifunction data line interface

Analog video interface

CVBS (pal)

Data Export Interface

U SB

External power interface

12V ±3V

Position the directional equipment interface

R S232

Wifi

Picture transmission and control host

8. Continuous working time Specifications

Category

Item

Specification

continuous work

duration

working hours

5 hours (@25℃)

Battery installation mode

Install at will

External power supply

Endovirus for 24 hours

9. Physical Specifications

category

Item

Specification

Physical

size

195 mm  *108mm  *75mm

weight

0.97kg (excluding battery, lens cover, etc.)

10.  The environmental adaptation Specifications

Category

Item

Specification

Environmental suitability

Levels of protection

IP67

Working temperature

-40℃60℃

Storage temperature

-55℃70℃

Muggy

+ 30℃ ~ + 60℃, 95% relative humidity

3 * 24 Hours
