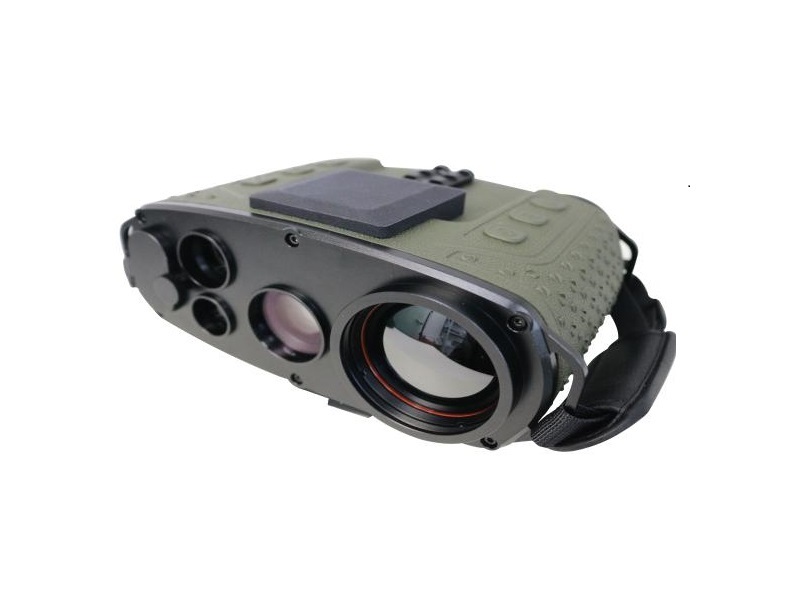

HL8 Fusion Thermal Binocular with LRF

Model

HL8-640

Sensor

         VOX

Resolution

640x512

Pitch

12μm

FOV

8 . 8°x7 . 0°

Spectrium

8~14μm

NETD

<50mk@25℃，@f/1 . 0

Focus length

50mm

Frame rate

≤50Hz

Focus

Motorized

Detection

Human(1 . 7mx0 . 5mx0 . 3m)

4722m

Vehicle (4 . 5mx2 . 0mx1 . 5m)

12500m

Identification

Human ( 1 . 7mx0 . 5mx0 . 3m)

1180m

Vehicle  (4 . 5mx2 . 0mx1 . 5m)

3125m

Low light

Sensor

Full color CMOS

Resolution

1920×1080

Pitch

4 . 0μm

Focus length

35mm

Frame

≤30Hz

Display

Display

OLED

Resolution

1024x768

Display size

0 . 39Inch

Display mode

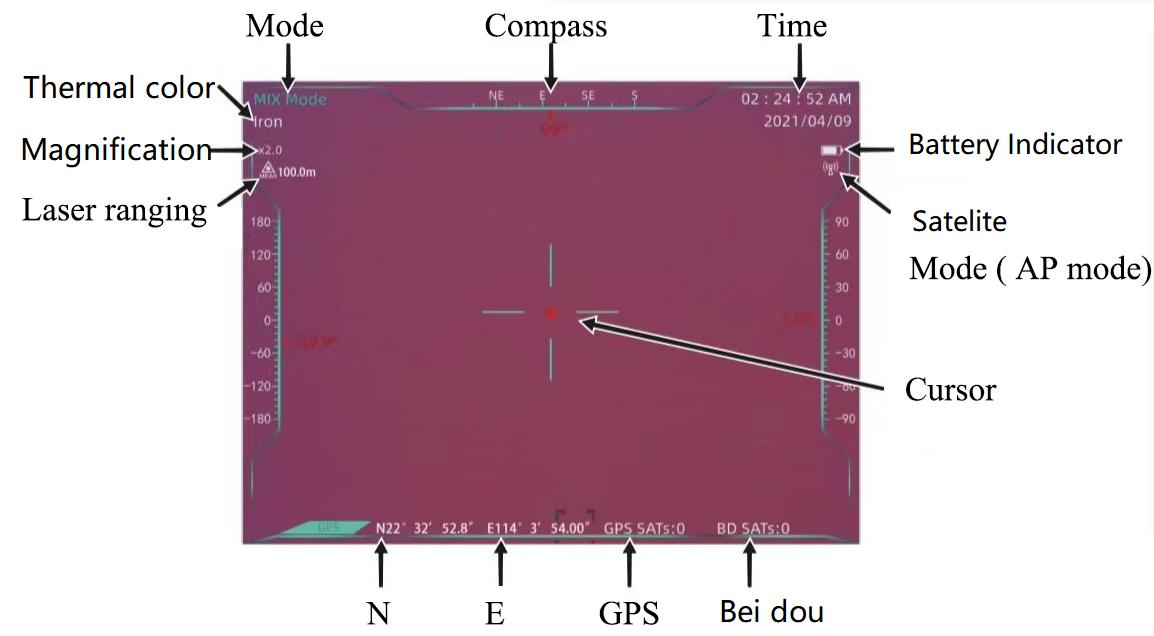

IR / Low light/fusion/picture in picture

Zoom

1X /2X /4X/8X

Dioptre adjustment

±4SD

Thermal color

Rainbow,Iron,cold,white hot, black hot

WIFI

2 .4G image transfer

E compass

azimuth

Location

GPS/BD

Distance

Range

10m - 2500m

Accuracy

<400m，±1m；>400m，0 .4%

Storage

Storage

    16GB


Support

Video

Support

Picture/video format

JPG/MP4

Interface

CVBS output

PAL video

USB interface

Picture and video

External

DC 12V/ 1A
