Night Vision

G14C Helmet Mounted Fusion Night vision Goggle

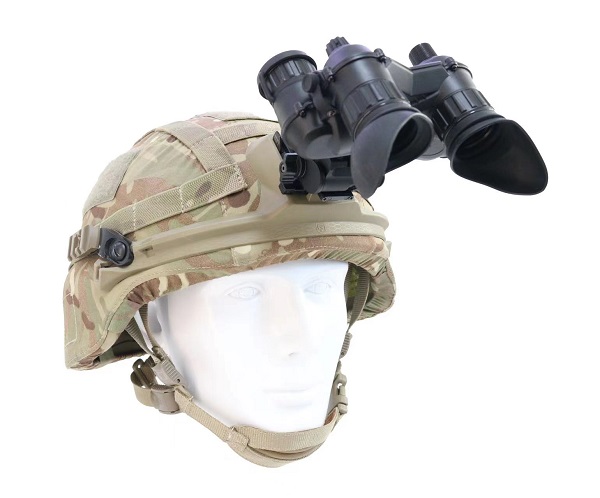

A military helmet mounted night vision goggle
Follow:
Description

                                        A military helmet mounted night vision goggle



1. 50 degree FOV.

2. Folded optical channel with shorter front depth.

3. Less deformity, high quality image.

4. Indicators to show the status.

5. Fusion of low light and thermal

6. Respond to the surrounding light in real time, in auto mode, it can adjust the IR illuminate automatically.

7. Optional near infrared, far in-fared IR illuminater.

8. High strength Housing Material is high temperature resistant, light weight, battery radiation resistant.

9. Center of the gravity is located at the back,more comfortable with facing wear, the actual weight is much lighter than the design.

10.  Auto flip up for switching off, convenient

11. CR123 or AA battery can be used for powering it.

12. Waterproof: IP67.

13. Easy operation, one button

14. 50 degree FOV thermal and the fusion reaches the full screen.



Specification:



Model:G14C

Magnification

1X

FOV

>50 degree

 Optical  axis parallel

<0.5 degree

Image intensification tube

Gen 2/Gen 3

Aperture

F1.18  22.5mm

 MTF

120LP/mm

Deformity

1% Max

Relative humidity

>75%

Coating

Super wide multi-layer optical coating

Focus range

250mm-∞

Focus

Manual

Eye relief

25-30mm

Exit pupil

9mm

Dioptre

+/-5 degree

Display

OLED

Display resolution

1280x720

Fusion Ration

Full screen

Spectrum

8-12uM

IR resolution

384x288

Fusion mode

Optical

Structure

Goggle

Flip

Auto-check-flip up for off

Power

CR123x1external battery pack is available

Voltage

2.5-4.2V

Installation

Helmet mountedStandard FST Helmet

Control

ON/IR/AUTO

Power

<1.5W( indicator)

Capacity

600-3200maH

Battery life

2-50H

IR illumination

850nm 10mW

Working temp

-40--+55℃

Humidity

5%-95%

Protection

IP65/IP67

Dimension

80x132x81    cm

Weight no battery

430G
