Feature:

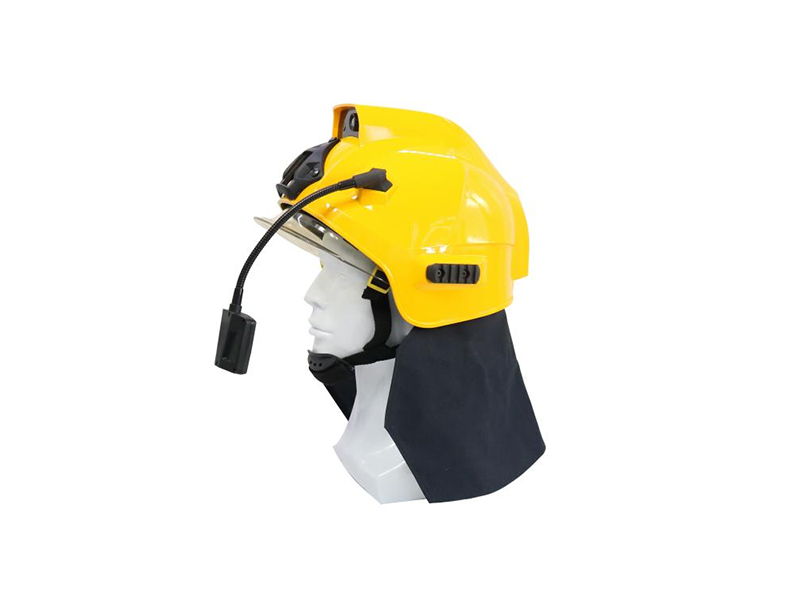

1.The helmet is built with thermal camera to set free two hands of fire fighters. Thermal can discover the trapped people behind the smog and fire.
2. Temperature can be measured: max,mini, center to discover the hidden fire.
3. With wireless charging adaptor for any-time charging
4. By Sim card in the helmet, image can be transferred to control center, who can know the location of each firefighters and the view can be switched to any firefighter to follow him.
5. Explosion proof: circuit board and battery are made explosive proof, which is certified by China Explosion Authority and Helmet Safety Organization.
6. SOS emergency call, which will be noted on the control center
7. It can connect with the watch to show life signal, by which the control center can know clear about the heart rate and body temperature of fire fighters.
8. With blue-teeth and air breathing sensor, the control center can know how long will the air breathing on the firefighter will work.
9. Helmet is designed to be able to fit the air breathing mask.
10. Fire proof face shield, flaming retarded cappa.
11. IP67 Protection
Specification:
Platform | |
Operating system | Android 7.0 |
TF card | 128G |
Software | 4G location transmission, switch between thermal and visible light |
APP | Phone APP for remote monitor, and specification set-up |
PC | PC APP for remote monitor and specification set-up |
Backstage server | Support the self-built server |
Net work | |
Cellular data | 4G for all the networks |
WIFI | 802.11b/g protocol,support 2.4GHZ, 5GHz, support the self established network |
Blueteeth | BT V4.0 |
Location | Beidou, GPS |
Battery | |
Capacity | 8000maH |
Working hours | More than 8 hours |
Charging | USB charger,Type-C port |
Physical | |
Weight | 1700g |
Protection | IP67 |
Explosion | Ex ib IIC T4 Gb/Ex ibD 21 T130℃ |
Material | Fire proof ABS |
Buttons | Switch on/ off, display switch, video/ record, brightness, SOS |
Port | TypeC-USB,SIM card,earphone |
Display | 2.9 inch |
Audio | |
Microphone | 52DB microphone |
Audio | 3.5 audio earphone,blueteeth earphone, walkie-talkie, |
Visible light camera | |
Lens FOV | 120 degree super wide |
Resolution | 1080P |
Thermal camera | |
Resolution | 384×288 |
Frame rate | 25Hz/50Hz |
Color | White hot/black hot/IR color |
Video | |
Video upload | Send request to the backstage to upload |
Protocal | Personal protocal / rtsp / 28181 |
Video format | MKV/MP4 |
Video code rate | 256kbps-8Mbps |
Mesh network
The Mesh network can be established by WIFI. Mesh network support muilti-points extension to cover more area.
Mesh network can support about 20 points.
Monitor App
The monitor App can be installed on phones, tablets, even the PC. The APP can preview the image from the helmet, recieving the image, audio, vidoe from the helmet.
In the app, the location ( coordinates) of the fire fighters can be shown.
