Night Vision

AVS9C Aviator night vision goggles

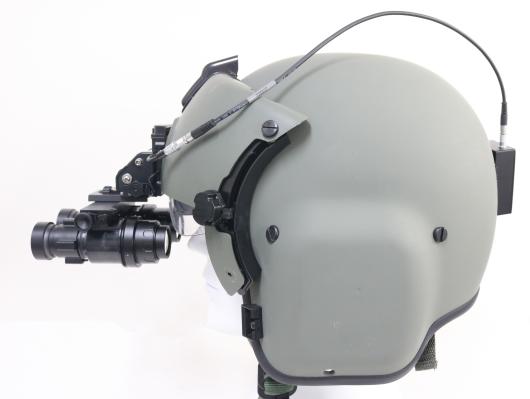

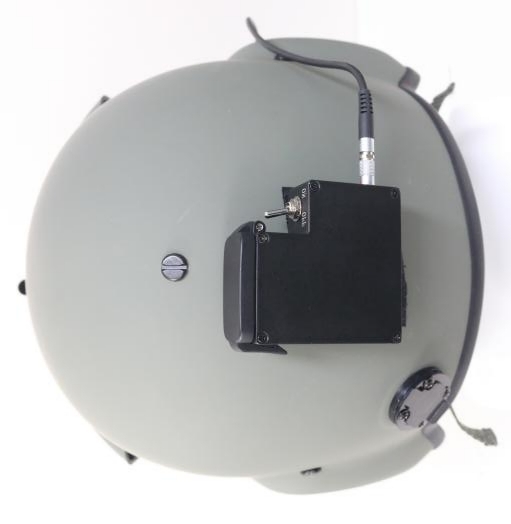

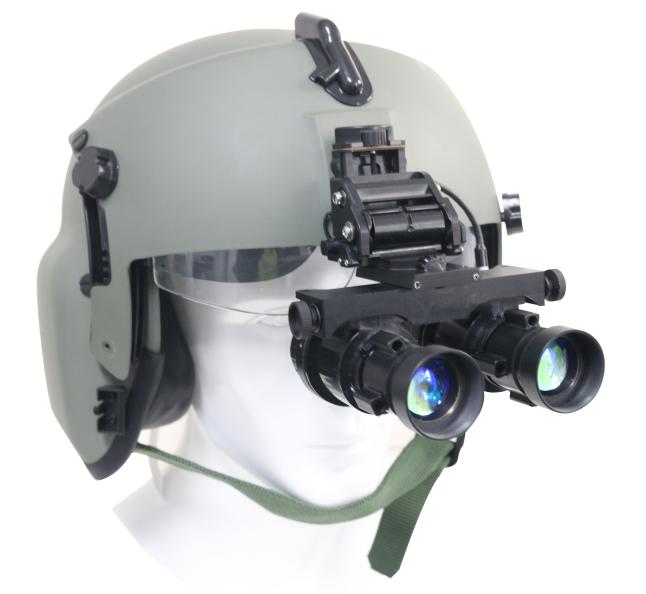

This is a binocular night vision enhancement system installed on the pilot's helmet, which can enable the pilot to see the surrounding environment clearly under moonlight or starlight conditions, and assist the pilot to complete night flight, landing, observation and identification, etc.
Follow:
Description

Key Features

AVS9C Aviator NVG has OEM standard which is compatible with Gallet LH250 ANVIS helmet mount aircraft and ANVIS lighting system.



Generation

: 3

Field of View

: 40o

Magnification

: 1X

Objective Lens

: 25mm

Objective Lens/F#

: F1.23

Minimum Resolution (cy/mr)

: 1.1

Minimum Brightness gain (f1/f1)

: 2800

I2 Tube Minimum Resolution

: 681p/mm

Eyepiece Lens

: 25mm

Eye Relief

: 25mm

Diopter Adjustment

: +2 to -6

Interpupillary Adjustment

: 52 to 75mm

Vertical Adjustment

: 25mm range

Fore-and Aft Adjustment

: 27mm range

Tilt Adjustment

:10o

Automatic Breakaway

: 10 to 15g

Weight

: 496g

Battery Type

: Two AA alkaline rechargeable battery(with

recharger)

Operating Temperature

: -32oC to +52oC

Accessories

: Soft Carry Case, Helmet Mount Assembly, Rechargeable Battery, Lens Cover, Lens Cleaning Material and operating Manual in English and

Chinese.
